Richard Lampert

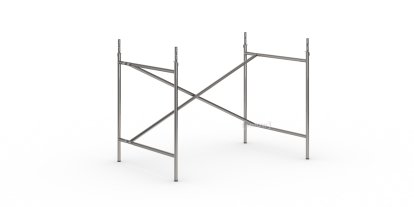

Eiermann 2 Table Frame , Clear lacquered steel, Vertical, offset, 100 x 66 cm, With extension (height 72-85 cm)

by Richard Lampert — from CHF 239.00
Richard Lampert Eiermann 2 Table Frame

has been added to your wishlist.
Richard Lampert Logo
Eiermann 2 Table Frame  Clear lacquered steel|Vertical,  offset|100 x 66 cm|With extension (height 72-85 cm)

Click here for more images
360°
360°
CHF 289.00 *
More than 5 x in stock, delivery time 2-3 working days (country of delivery Switzerland)
3% advance payment discount*: CHF 280.33 (Save CHF 8.67)

The Eiermann 2 table frame is a slightly modified version of the original EgonEiermann table frame from 1953. The variation was realised in the 1960s by the then workshop manager at the Technical University of Karlsruhe, where Eiermann taught. With its vertical support bars, either placed centrally or slightly off-center, the Eiermann 2 offers advantages in terms of comfort, transport and construction, albeit in a marginally less refined construction. Richard Lampert currently offers both designs, also as a set with a matching table top.

Details

Product Type Frame for dinning table or desk
Dimensions

(1) Height: 66 cm
(2) Depth: 66 - 78 cm
(3) Length: 80 - 135 cm
Height with table top: 68,5 cm (72 / 75,5 / 79 / 82,5 / 86 cm with optional height extension)
Material Stainless steel, chrome plated steel or colour lacquered steel
Colours Table frame
Chrome
Luminous orange
Olive green
Clear lacquered steel
Black
Silver
White
Stainless steel


Material advice "clear lacquered steel": Please note that during production of the frame variants with the powder coating " clear lacquered steel", all surface treatment prior to powder coating is intentionally omitted. The clear lacquer coating is deliberately conceived to emphasise an intended technical-workshop expression (for example, the presence of distinctive welding spots). It is intended that discolouration, and also rust formation, under the powder coating arises/remains and is visible. The tubes are only degreased for processing. Following welding no additional sanding, smoothing, polishing or other cosmetic work is undertaken.

Stahl farblos

Variants Vertical support crossbar either centrally located or offset:
Central Offset

Find an overview of all recommended combinations of table frames and table top dimensions here:


Optional extensions (with 5 steps, each 35 mm - allowing a table height of 72 - 86 cm)
Function & Properties Height adjustable with extensions
For use as a dining table, we recommend the Eiermann mounting kit
Assembly Please click on picture for construction manual (ca. 1,1 MB).


Care We recommend cleaning with a soft, slightly damp, cotton cloth.

Any discolouration and colour residues from the galvanisation process that may have arisen during the production of chrome-plated frame parts do not represent a material defect, are not dangerous to health and have no influence whatsoever on the function/longevity of the table frame. If the deposits cannot be removed with a mild, standard household scouring milk, they can be easily removed with a paint cleaner / polish (e.g. from car accessories) using a soft cloth. We recommend that the cleaning is first carried out on a concealed area.
Warranty 24 months
Product family Eiermann tables
Accessories Table top for Eiermann table frames and accessories for Eiermann tables
Datasheet Please click on the image for more detailed information.

Product presentation

Popular versions

Eiermann 2 Table Frame , Chrome, Vertical,  offset, 135 x 78 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  offset, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  offset, 135 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  centred, 135 x 78 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Black, Vertical,  offset, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  centred, 135 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Clear lacquered steel, Vertical,  offset, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Clear lacquered steel, Vertical,  offset, 135 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  centred, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Clear lacquered steel, Vertical,  offset, 135 x 78 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Clear lacquered steel, Vertical,  centred, 135 x 78 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Silver, Vertical,  offset, 135 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , White, Vertical,  offset, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Black, Vertical,  centred, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Silver, Vertical,  offset, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , White, Vertical,  offset, 135 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  offset, 80 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Chrome, Vertical,  centred, 100 x 78 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , Clear lacquered steel, Vertical,  centred, 100 x 66 cm, With extension (height 72-85 cm)
Eiermann 2 Table Frame , White, Vertical,  offset, 135 x 78 cm, With extension (height 72-85 cm)

FAQ

?
Should the answers to your questions not be found here, our service team can be contacted Mon-Fri, 9 am - 5 pm and Sat, 9 am - 5 pm via 031 981 40 67.

How much weight can the Eiermann 2 table frame support?

Richard Lampert recommends a maximum weight of 90 kg for the Eiermann table frame. The frame can support a greater weight; however, should the table be knocked from the side or is otherwise moved, the frame can develop a certain "momentum" and potentially deform.

Which table tops can be used with the Eiermann 2 table frame?

Egon Eiermann designed the original frame (the so-called Eiermann 1) without an associated table top: his students simply used any available board as a desktop. The manufacturer Lampert however offers table tops in various sizes to match the various frame sizes. The table top should always protrude sufficiently beyond the frame - i.e.e.g, for the 78 cm deep frame, choose the 90cm deep table top.

What is the difference between the Eiermann 2 table frame colours chrome, silver and clear lacquered steel?

The silver frame is a silver lacquered finish which in contrast to the chrome frame is more matt. The chrome plated frames shimmer. With the colourless frame the steel tubing itself is visible - and thus also not only are the welds visible but over time changes in the material may occur. The colourless version of the Eiermann frame has a "raw" industrial character and is often ordered by architects and artists.

Design Story

The Design

In 1953 Egon Eiermann created a table frame that would go on to adorn offices for the next six decades. With its characteristic oblique support cross bar the Eiermann table frame is a table frame like no other. No less unique is the free choice of table top for the table frame: in principal anything can be used. However because the refined design of the original Eiermann Table Frame 1 was sometimes perceived as being impractical, Eiermann table manufacturer Richard Lampert also produce a second, adapted version of the Eiermann table frame. Created in 1965, so a few years after Egon Eiermann has completed his original design, the workshop manager at the Technical University of Karlsruhe, where Eiermann taught, devised an slightly altered version of the design. Popularly referred to as the "Eiermann Table Frame 2", this version features a vertical support crossbar, thus allowing more freedom under the frame than in the Eiermann 1 version. Two versions of the Eiermann 2 frame are available from Richard Lampert, one with the support crossbar placed centrally and one with it slightly offset

The Hortenkachel. Developed in 1960 by Egon Eiermann

Eiermann 2 frame, offset and central

Production

In the 1990s Stuttgart based furniture manufacturer Richard Lampert acquired the license for the Eiermann Table Frame 1 and in addition to producing the original Eiermann also brought an adapted version, the Eiermann 2, onto the market. The Eiermann table frame is available in a range of materials and colours and can be combined with a table top, also supplied by Richard Lampert.

Designer Egon Eiermann

Designer

Born in 1904 in Neuendorf (now part of Potsdam-Babelsberg) Egon Eiermann is among the most important architects of the post-war Germany. Eiermann studied architecture at the Technical University of Berlin and in the following decades worked on numerous projects - perhaps most notably, and at the same time most controversial, of which being the 1961 New Kaiser Wilhelm Memorial Church in Berlin. A further much discussed aspect of Egon Eiermann's oeuvre was his numerous constructions for the Stuttgart department store chain Horten AG: constructions which gave the world the so-called Hortenkacheln -a true love it or hate it piece of facade styling. Much less controversial are Eiermann's furniture designs. Created from the 1950s onwards Eiermann's chairs and tables are widely regarded as design classics and for all the Eiermann table is more popular today than ever. Egon Eiermann 1970 died in Baden-Baden.

Historical Context

Although Egon Eiermann studied architecture from 1924 to 1927 - so at the height of Bauhaus - his work stands in no relation to the avant-garde design and architecture movement. Egon Eiermann's main work was created after the Second World War and is considered part of the so-called "second modernity". Only later, on a study trip to the USA in the 1950s, die Eiermann become acquainted with Walter Gropius and Marcel Breuer, and a few years later with Ludwig Mies van der Rohe. Eiermann's work stands for modernity, mediates a freshness and lightness, symbolizes progress and remains to this day an inspiring and exiting oeuvre. In addition Eiermann's designs also reflect that time honoured principles of functionalism and good form expression.

Manufacturer

The Eiermann Table Frames are manufactured by Stuttgart based producer Richard Lampert. The company itself was founded in 1993 by Lampert upon his acquiring the license for the Eiermann Table Frame 1. Since then the company has grown and today offers a sophisticated, international furniture range of classic and contemporary furniture by international designers such as, for example, Peter Horn, Herbert Hirche and Otto Sudrow. In addition of course to Egon Eiermann.

Richard Lampert: Manufacturer of the Eiermann table frames

Eiermann Table: Accessories

Eiermann Height Extension

Eiermann Table Extension - Flexibility in height and angle

To allow for more individual height adjustment options these Eiermann Table extensions allow the basic height of 65 cm to be increased in five stages of 35 mm up to maximum height of 85 cm. Because each extension can be individually adjusted the extensions also allow the table frame to be angled, for example, for use as a drawing table.

Eiermann mounting set

Mounting set - For fine adjustments and fixing

For fixing or finely adjusting the table top the Mounting set allows height differences of up to 20 mm to be evened out. Leaving no excuse for uneven surfaces!


Eiermann 1 cable trough

Cable trough - For a little order under your desk

Safely and securely store cables and similar objects under your Eiermann Table with the cable trough. Available in a range of sizes for all the Eiermann Tables the cable trough simply hangs in the frame and solves all those cable salad problems.


Eiermann height adjustable feet

Height adjustable feet - The simple solution for uneven floor surfaces

Uneven floor surfaces can make correctly positioning a desk a tiring business. The Richard Lampert height adjustable feet are simply screwed into the Eiermann table frame and can even out differences of between 20 and 40 mm. Thus ensuring the work surface you deserve. Regardless of where you work.


Industrial castors - For a mobile workplace

The industrial castors turn a static Eiermann table frame into a mobile office element that can be effortlessly transferred from A to B and back again as required. And with each set containing two castors with a brake, security is also included. Through the castors the table top height is raised by 70 mm

Eiermann Table Frame 1 vs Eiermann Table Frame 2

The Eiermann table frame 1  is an undisputed classic of contemporary furniture design. Designed in 1953 by Egon Eiermann the table frame is composed of two steel tube side elements joined, and stabilised, by a diagonally attached crossbar. Utilising a minimum of material to achieve a maximum of stability in an object that remains true to Eiermann's aesthetic principles, the Eiermann table frame 1 is as unique in its construction as it is flexible in its uses.

Eiermann Tischgestell 1

Eiermann Table Frame 1

Eiermann Tischgestell 2, versetzt

Eiermann Table Frame 2, offset

Eiermann Tischgestell 2, mittig

Eiermann Table Frame 2, centred

The adapted version of the table frame with the vertical supporting crossbar was developed in 1965 and is, as with the original model, known as the Eiermann table frame. Indeed over the years the name Eiermann table frame 2 has established itself in common parlance to distinguish the version designed directly by Egon Eiermann and the adapted version.

In direct comparison of both frames one instantly realises that the Eiermann 1 typifies Egon Eiermann's attention to fine detail more than the rather industrial Eiermann 2.
